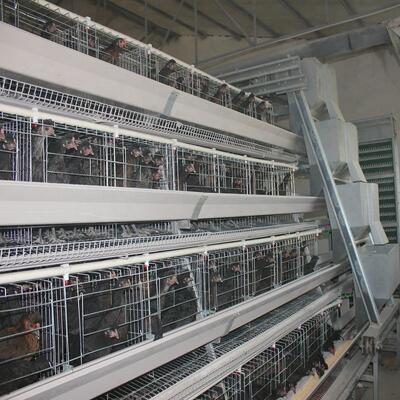

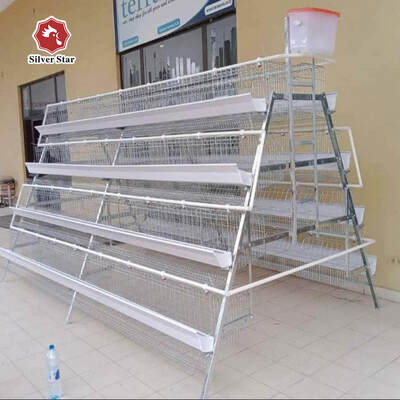

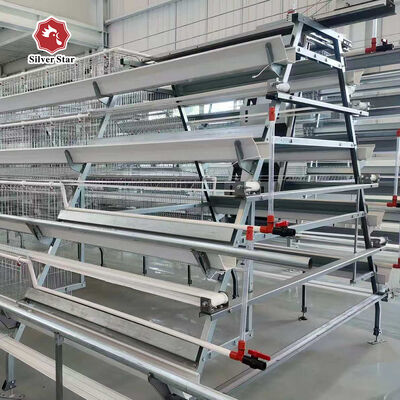

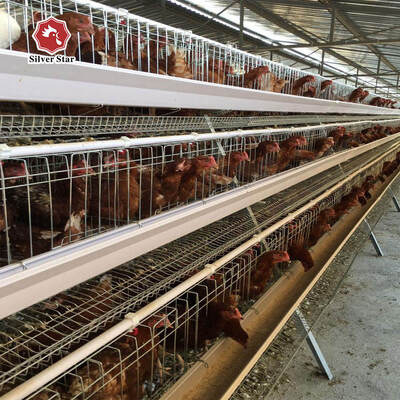

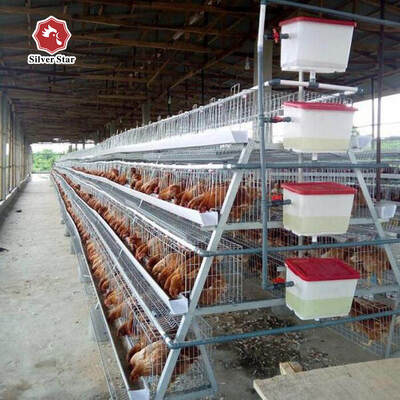

A-Type Broiler Battery Cage System for Poultry Farm Hot-Dip Galvanized A-Type Broiler Cage Manufacturer

Lugar de origem China
Marca Silver Star
Certificação ISO9001,SGS, POVC
Número do modelo Um tipo
Quantidade de ordem mínima 10 conjuntos
Preço $120-148
Detalhes da embalagem Caixa de madeira ou carga em recipiente
Tempo de entrega 15-30 dias
Termos de pagamento L/C,D/A,D/P,T/T,Western Union
Habilidade da fonte Mês de 10000 GRUPOS
Detalhes do produto
Capacidade dos pássaros 90-240 aves Tipo de operação Sistema automático de remoção de estrume
Superfície Galvanizado quente Peso 15kg
Sistema de Ventilação Sim Capacidade 3-5 frangos de corte por gaiola
Outros acessórios Oferecido Chão Três andares.-Oito andares
Durabilidade Resistente à corrosão e duradouro Tipos Tipo A, tipo H (Battery Cage)
Adequado para Frangos, patos, gansos Número de ninhos 3 a 4
Tipo de gaiola Sistema de Gaiola de Bateria de Camadas Conformidade com as normas Padrão Europeu e Padrão Americano
Deixe um recado
Descrição de produto
Premium Hot-Galvanized A-Type Broiler Chicken Cage System

Product Details
Our A-Type Broiler Chicken Cage is specifically designed for open or closed poultry houses to optimize space utilization and improve broiler growth rates. Manufactured with advanced hot-dip galvanization technology, it guarantees a service life of over 15-20 years, resisting corrosion in harsh farm environments.
Specifications
Why choose a type A cage?
  • High Density: Increases rearing capacity by 3-4 times compared to floor raising.

  • Labor Saving: Highly compatible with automatic feeding, drinking, and manure removal systems.

  • Better Ventilation: A-type structure ensures optimal airflow, reducing disease risks.

Product Specifications


Parameter 3-Tier A-Type Broiler Cage 4-Tier A-Type Broiler Cage
Material Cold Galvanized / Hot-dip Galvanized Q235 Steel Hot-dip Galvanized Q235 Steel
Dimension / Set 1840mm x 2150mm x 1580mm 1840mm x 2665mm x 2260mm
Capacity / Set 90 - 180 broilers (depending on weight) 120 - 240 broilers (depending on weight)
Cell Siz 650mm x 600mm x 450mm 613mm x 500mm x 370mm
Lifespan 15 - 20 Years 15 - 20 Years
Applicable Feeding Manual or Automatic System Automatic System Recommended

Advantages
  • Ultimate Durability: Made of high-tensile Q235 steel wire with a 275g/m² zinc coating, providing superior corrosion resistance.

  • Injury Prevention: Smooth cage mesh and scientific bottom slope design drastically reduce breast blisters and wing injuries in broilers.

  • Perfect Ventilation: The stepped design avoids top-tier droppings falling on lower tiers and ensures every chicken gets fresh air.

Fully Integrated Automated Sub-Systems
1. Smart Broiler Feeding System
Specialized round feed pans or longitudinal feeding hoppers designed to prevent feed spillage and wastage. The feeding line height is easily adjustable to accommodate the rapid growth of chicks from Day 1 to market day.
H-Type Automated Broiler Cage System showing feeding mechanism

2. Hygienic Nipple Drinking System
360° stainless steel nipple drinkers equipped with double-sealing water valves and water drip cups to keep the manure dry. Includes a precise water medication medicator and pressure regulator for uniform flock hydration.
Close-up view of nipple drinking system in broiler cage

3. Automatic Manure Removal System
Thick, heavy-duty Polypropylene (PP) conveyor belts under each tier guarantee continuous waste removal, keeping the indoor air fresh and clean 24/7.
Automatic manure removal system in operation

4. Smart Climate & Ventilation System
Connects negative-pressure exhaust fans, cooling pads, and air inlets to an intelligent environmental controller, strictly maintaining the optimum temperature and humidity needed for maximum growth weight.
Climate control and ventilation system components

FAQ
Q: How many broilers can a 4-tier H-type cage system hold?
A: The capacity depends on the specific cage dimensions and your target market weight (e.g., 1.5kg vs 2.5kg). Generally, an H-type system can increase your farm's housing capacity by over 200% compared to deep litter systems. Contact our engineers for a precise capacity calculation.

Q: Do you provide poultry house layout designs?
A: Yes! We provide free designs tailored to your land size and local climate conditions.
Complete H-Type Automated Broiler Cage System installation
